Deployments

Available to: Developers, Admins Minimum plan: Free

A deployment takes the table definitions on a branch and applies them to the physical database — creating new tables or altering existing ones. Until you deploy, changes to table definitions are metadata only and do not affect the actual data tables.

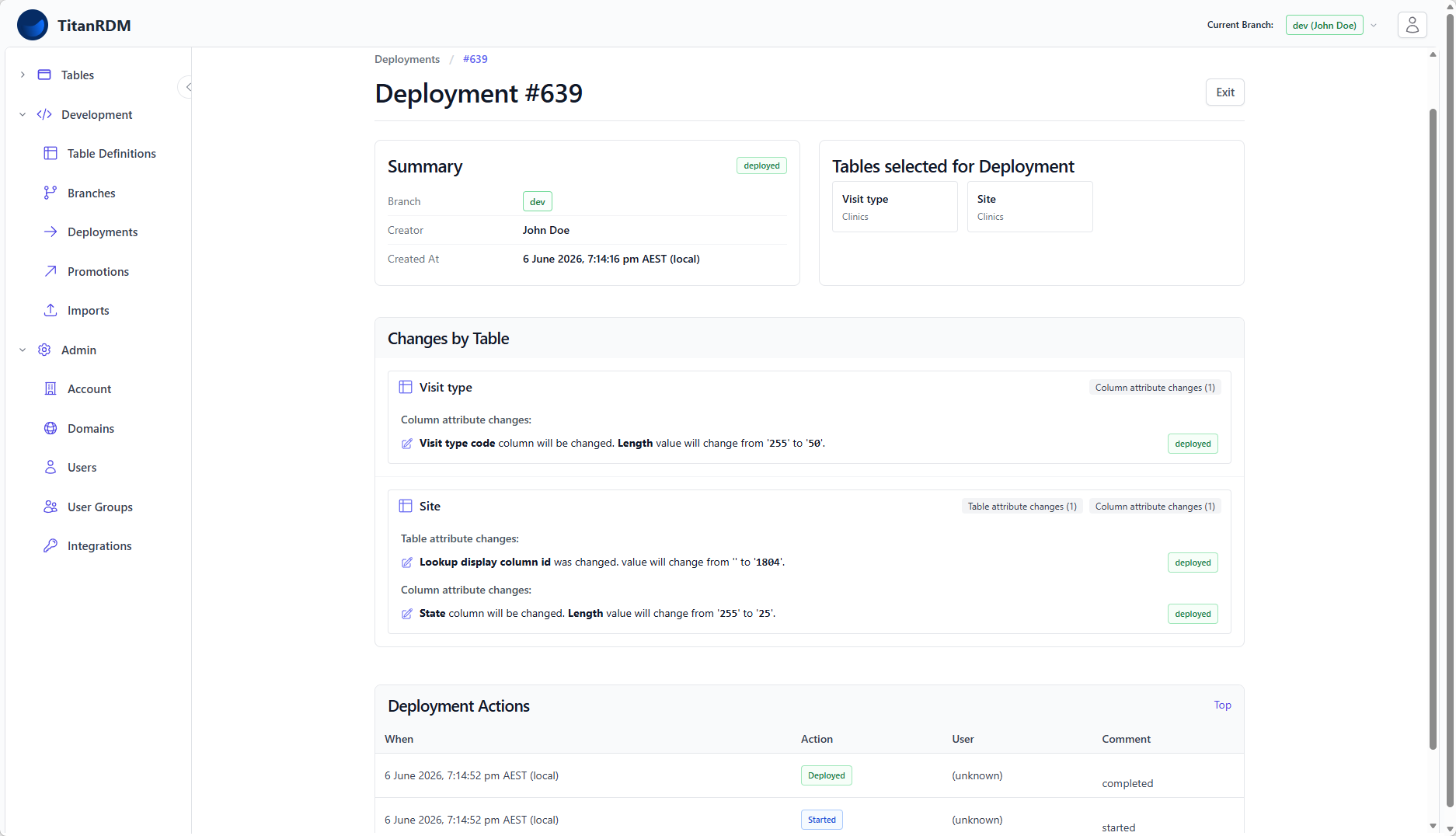

Deployment show page

Why Deploy?

TitanRDM deliberately separates defining a table from creating it. This gives you a review step between making a change and applying it:

  • You can add, rename, or remove columns on a table definition without any risk to live data
  • You can review exactly what will change before it takes effect
  • Multiple table changes can be batched into a single deployment
  • If something goes wrong, the deployment fails cleanly without leaving the database in a partial state

The Deployment Lifecycle

A deployment moves through these statuses:

Created → Deployed
           ├── Failed → (Retry)
           ├── Rejected
           └── Abandoned
           └── Deployed
StatusMeaning
CreatedThe deployment has been prepared and is ready for review. No changes have been applied yet.
DeployedAll changes were successfully applied to the database.
FailedOne or more changes could not be applied. The deployment can be retried.
RejectedAn approver reviewed the deployment and rejected it.
AbandonedThe deployment was cancelled without being applied.

Creating a Deployment

  1. Navigate to Development > Deployments
  2. Click New Deployment
  3. TitanRDM scans your current branch for table definitions that have changed since their last deployment
  4. Select the tables you want to include in this deployment (or deploy all)
  5. Review the changes

The Diff Review

Before deploying, TitanRDM shows you a detailed diff of every change that will be applied. The diff is organised into four levels:

Diff LevelWhat It Shows
Table changesNew tables being created, existing tables being updated
Table attribute changesChanges to table-level properties: name, database table name, domain, description, load type, lookup display column
Column changesNew columns being added, existing columns being updated, or columns being removed
Column attribute changesChanges to column-level properties: name, data type, primary key, foreign key, length, scale

Each change shows the old value and new value side by side, so you can verify exactly what will happen.

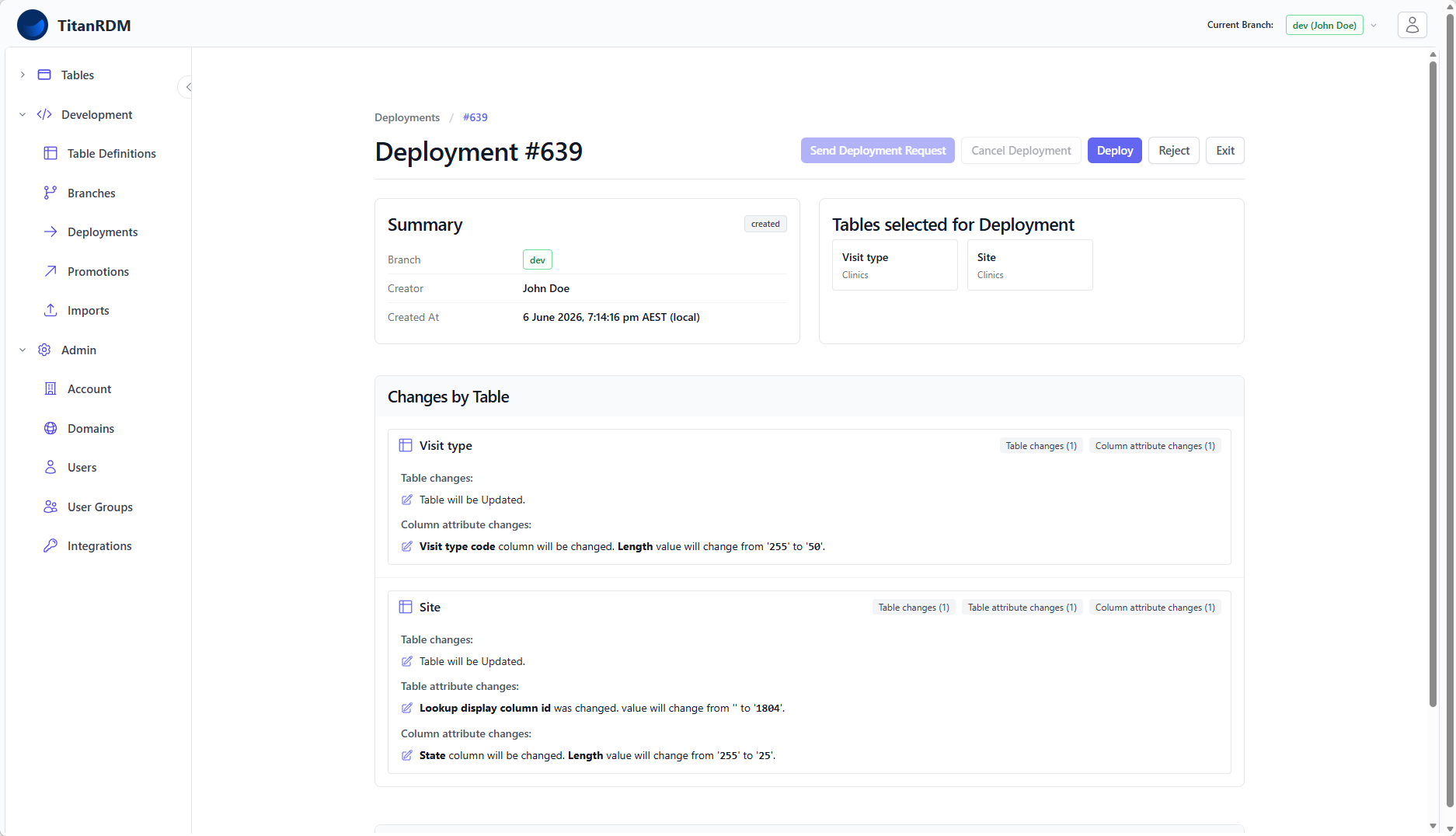

Deployment diff review

Deploying

Once you have reviewed the changes:

  1. Click Deploy
  2. TitanRDM executes the changes against the physical database

What Happens During Deployment

For each table in the deployment, TitanRDM generates and executes SQL statements:

New tables: - CREATE TABLE with all defined columns - System columns are added automatically (trdm_sk, trdm_created_at, trdm_updated_at, trdm_updated_by, trdm_is_deleted) - Primary key constraints are created - A DeployedTableDefinition and DeployedColumnDefinition records are created to track the deployed state

Updated tables: - ALTER TABLE statements for each column change (add, rename, change type, drop) - Constraint modifications as needed - The deployed definition records are updated to match

Dependency Ordering

TitanRDM automatically orders table changes based on foreign key dependencies. If Table A references Table B via a foreign key, Table B is deployed first. This prevents errors from referencing tables that do not yet exist.

Deployment Actions

Every deployment records an audit trail of actions:

ActionWhen
CreatedWhen the deployment is first prepared
StartedWhen the deploy button is clicked
DeployedWhen all changes are successfully applied
FailedIf an error occurs during deployment
RejectedIf an approver rejects the deployment
AbandonedIf the deployment is cancelled

These actions include timestamps and the user who performed them, providing a complete audit trail.

Handling Failures

If a deployment fails:

  1. The error message is displayed on the deployment detail page
  2. The deployment status changes to Failed
  3. You can fix the underlying issue (e.g., correct a column definition) and click Retry
  4. Or you can Abandon the deployment and create a new one

Common failure causes: - A column type change that is incompatible with existing data (e.g., changing varchar to integer when non-numeric data exists) - A foreign key reference to a table that has not been deployed yet - A naming conflict with an existing database object

Deployment vs Promotion

It is important to understand the distinction:

DeploymentPromotion
What it doesApplies table definitions to the physical database on the current branchCopies table definitions from one branch to another
When to useAfter creating or modifying table definitionsAfter deploying and testing on one branch, to move changes to the next environment
ScopeOne branchBetween two branches (source → target)

A typical workflow on a Business/Enterprise plan: 1. Create a new table on a Private Developer branch, or clone an existing table from a higher environment (Test/Prod) branch. 2. Make your changes 3. Deploy on Private Development (creates/alters physical tables on Dev) 4. Promote from Private Development to Test (copies definitions) 5. Deploy on Test (creates/alters physical tables on Test) 6. Promote from Test to Production 7. Deploy on Production

Deployments on Free and Team Plans

On Free and Team plans with a single Production branch, the workflow is simpler:

  1. Edit table definitions on Production
  2. Deploy on Production

There is no promotion step because there is only one branch. Changes go live immediately when deployed.

Deleting Tables

TitanRDM provides a safe removal process for table definitions on the table definitions index page. When you remove a table, the physical database table is renamed (not dropped). See the Removing a Table page for more details.
