Import Mappings

Available to: Developers, Admins Minimum plan: Free

An import mapping defines how columns in an uploaded file map to columns in a table definition. Import mappings make repeated imports consistent and reliable — instead of relying on auto-matching by column name, you explicitly specify which file column maps to which table column.

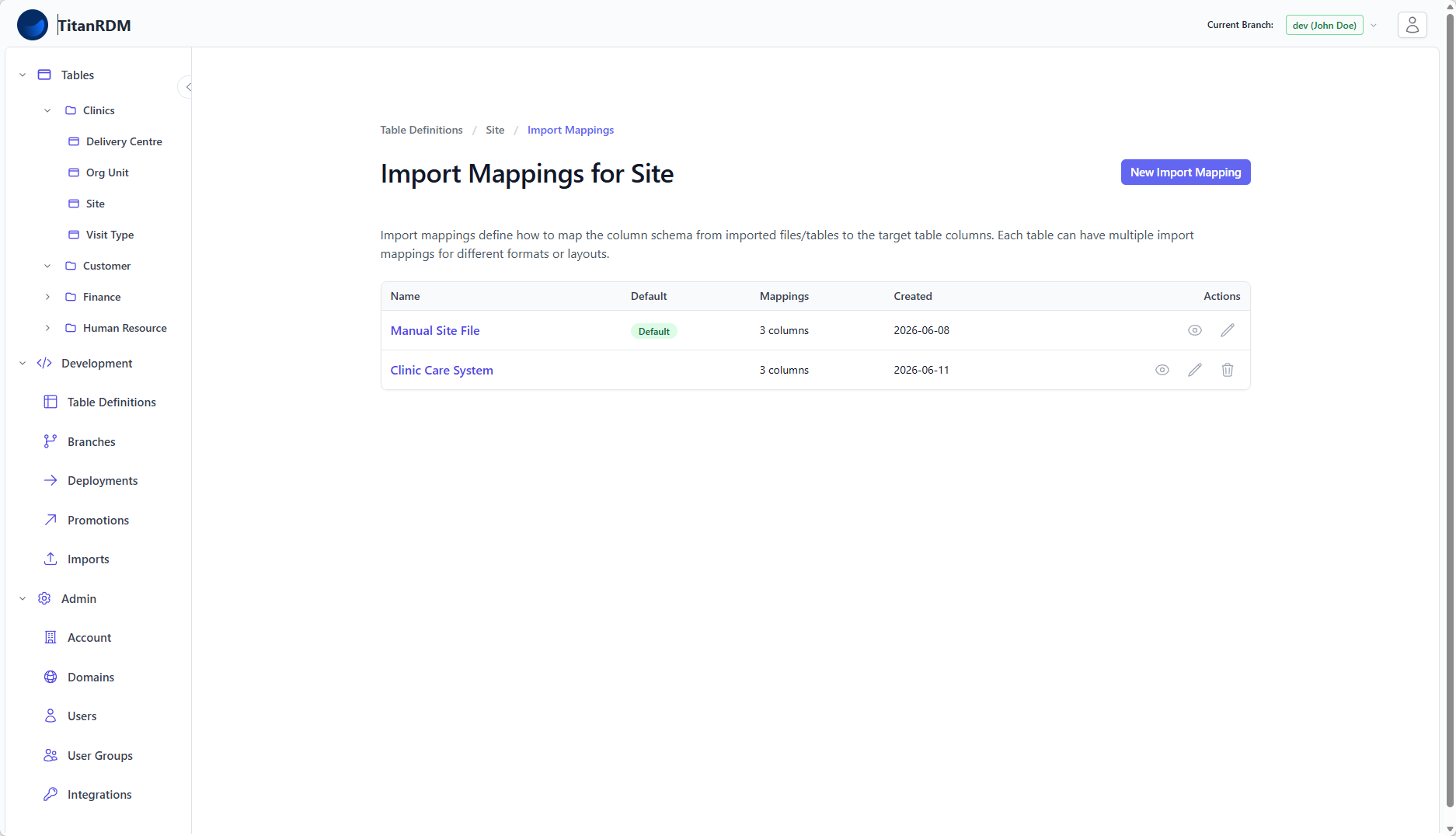

Import mappings list

Why Use Import Mappings?

Auto-matching (the default when no mapping is selected) works well when your file column names exactly match your table column names. Import mappings become essential when:

File column names differ from table column names (e.g., CurrCode in the file maps to currency_code in the table)
You want to ignore certain file columns that are not relevant
You import the same file structure regularly and want guaranteed consistency
Multiple files with different structures feed into the same table
You need to specify a delimiter other than comma (e.g., pipe |, tab, semicolon)
You need to specify a date style (MDY or DMY) for date parsing

Import Mapping Properties

Property	Required	Description
Name	Yes	A descriptive name (e.g., `ERP Product Feed`, `Manual Currency Upload`). Must be unique per table.
Date Style	Yes	How dates in the file are formatted. `MDY` = month/day/year, `DMY` = day/month/year. Default: `MDY`.
Is Default	No	If checked, this mapping is automatically pre-selected on the import page. Only one mapping per table can be the default.

Column Mappings

Each import mapping contains one or more column mappings that define the file-to-table relationship:

Property	Description
Source Column	The column name as it appears in the file header
Target Column	The table column this maps to
Format	Optional PostgreSQL format pattern for `date`, `timestamp`, and `timestamptz` columns (e.g., `DD/MM/YYYY`, `MM-DD-YYYY HH24:MI:SS`). Uses `to_timestamp()` / `to_date()` syntax. Only shown when the target column is a date/time type.

Only columns with a mapping are imported. File columns without a mapping are ignored. Table columns without a mapping receive null values (or retain their existing value on update).

Date & Time Format Guide

When a column mapping targets a date, timestamp, or timestamptz column, you can supply an optional Format pattern. The format tells the importer how to parse the value in the file. If you leave the format blank, the system tries to auto-detect the format.

Dates & Timestamps That Don't Require a Format

These forms are recognised automatically:

ISO 8601 / RFC-style (most reliable):
- '2025-11-19' → midnight on that date
- '2025-11-19 13:45'
- '2025-11-19 13:45:12.345678'
- '2025-11-19T13:45:12.3' (the T is fine)
Named months and common English forms:
- 'Nov 19 2025 13:45'
- '19 Nov 2025 13:45'

Ambiguous formats — Strings like '01/02/2025' are valid but ambiguous. They rely on your Date Style for interpretation: - Date Style = MDY: interpreted as January 2, 2025 (month-day-year) - Date Style = DMY: interpreted as 1 February, 2025 (day-month-year)

Fractional seconds are fine
Whitespace is ignored
For timestamp: zone/offset info is ignored
For timestamptz: zone/offset is parsed; if absent, session timezone is used

Things That Will Fail

Impossible dates: '2025-02-30' → error
Non-recognised patterns (custom delimiters/ordering) → require a format to be specified

Custom Format Patterns

The format field uses PostgreSQL's to_timestamp() and to_date() format patterns.

Common Format Tokens

Category	Tokens
Date	`YYYY`, `YY` (year); `MM` (month number); `DD` (day of month); `DDD` (day of year); `J` (Julian date)
Time	`HH24`, `HH` (hours); `MI` (minutes); `SS` (seconds); `MS`, `US` (milliseconds, microseconds); `AM`, `PM`
Month/Day Names	`Mon`, `Month`, `Dy`, `Day`
Time Zone / Offset	`TZH` (hours of offset), `TZM` (minutes of offset), `OF` (full offset like `+10:00`), `TZ` (abbreviation, e.g., `PST`, `AEST`)
Modifiers	`FX` (strict mode), `TM` (locale-aware), `th`/`TH` (ordinal)

Example Format Strings

Format String	Matches Input
`DD/MM/YYYY`	`'31/12/2025'`
`MM-DD-YYYY HH24:MI:SS`	`'12-31-2025 23:59:59'`
`YYYY-MM-DD"T"HH24:MI:SS`	`'2025-12-31T23:59:59'`
`Mon DD, YYYY`	`'Dec 31, 2025'`

Valid Time Formats

Time-only columns (time, timetz) accept these forms automatically:

Example	Parsed Value
`'13:45'`	`13:45:00`
`'13:45:12'`	`13:45:12`
`'13:45:12.345'`	`13:45:12.345`
`'1:45 PM'`	`13:45:00`
`'01:45:05 am'`	`01:45:05`
`'134512'`	`13:45:12`
`'13.45.12'`	`13:45:12` (dot or colon)
`'13:45:12Z'`	`13:45:12` (Z ignored)

Hours and minutes are required. For times with time zones, common abbreviations are valid (e.g., '13:45:00 PST') or numerical offsets like '13:45:00+10'.

Creating an Import Mapping

Navigate to Development > Table Definitions
Open the table definition you want to create a mapping for
Click Import Mappings (in the table definition detail page or from the action menu)
Click New Import Mapping
Fill in:
- Name — descriptive identifier
- Date Style — select MDY or DMY
- Is Default — check if this should be the pre-selected mapping
Choose a Sample File (CSV, Excel, JSON, or Parquet, maximum 100 MB).
Click Create

The system will: - Upload the file - Analyse its structure and infer column names and data types - Auto-match file columns to existing table columns where names are similar - If the table has no columns yet, create new column definitions from the file

You are then redirected to the mapping editor to review and adjust the generated column mappings.

Reviewing and Adjusting Column Mappings

After the import mapping is created, the mapping editor opens automatically. The system pre-populates mappings based on the sample file:

Mapped columns show the matched file column selected in the dropdown
Unmapped columns show -- Do not map -- — select a file column from the dropdown to create a mapping
For date, timestamp, and timestamptz columns, you can optionally specify a custom Format pattern
Primary key and Required columns must be mapped for imports to succeed

Adjust any mappings as needed, then click Update Column Mappings to save. You can return to edit the mapping at any time from the mapping's detail page.

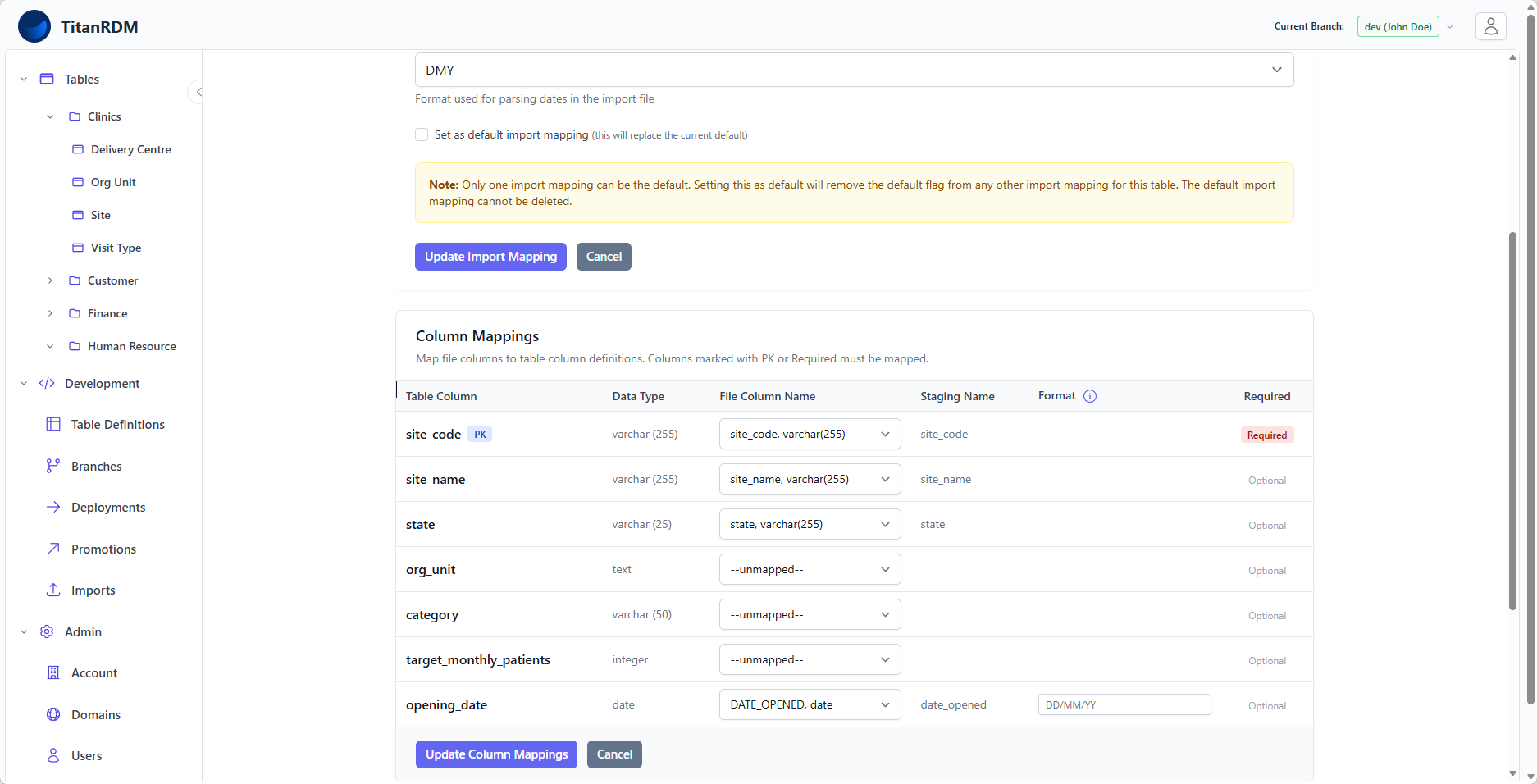

Import mapping column editor

Editing and Deleting

Editing

Change the mapping name or date style from the mapping's edit page
Add, edit, or remove individual column mappings

Setting as Default

Only one import mapping per table can be the default. When you mark a mapping as default, any previously default mapping is automatically un-marked.

Deleting

Import mappings are soft-deleted — they are marked as deleted and no longer appear in the import page dropdown, but the record is preserved for audit purposes.

Note: You cannot delete the default import mapping. Change the default to another mapping first, or remove the default flag.

Import Mappings and Promotions

Import mappings are part of the table definition and are included in promotions and clones. When you promote a table definition from Development to Test:

The import mappings are copied to the target branch
Column mappings are re-pointed to the equivalent columns on the target branch (matched by column key)

This means you only need to set up import mappings once on your development branch — they flow through the promotion pipeline automatically.

Using an Import Mapping

When importing data (either via the UI or the API):

Navigate to the table's data grid
Click Import Data
In the Import Mapping dropdown, select your mapping (or leave as "Auto-match" to skip)
Upload your file
Click Start Import

The import process uses the mapping to: - Match file columns to table columns using the explicit column mappings - Parse dates using the specified date style (MDY or DMY)

Auto-Match vs Named Mapping

Behaviour	Auto-Match	Named Mapping
Column matching	Case-insensitive name comparison	Explicit source → target mapping
Unmatched file columns	Ignored	Ignored
Unmatched table columns	Null (or unchanged on update)	Null (or unchanged on update)
Date style	System default	Specified in mapping
Consistency	Depends on file headers being consistent	Guaranteed

Best Practices

Name mappings clearly — include the source system or file type (e.g., SAP GL Extract, Monthly Product CSV)
Set a default for tables that are imported regularly from the same source
Use explicit mappings for automated/SDK imports to avoid breakage if file headers change
Review column mappings after adding new columns to a table definition — new columns need to be added to the mapping manually
