Table Definitions

Available to: Developers, Admins Minimum plan: Free

A table definition is the blueprint for a reference data table. It describes the table's name, domain, and structure — the set of column definitions that specify each column's name, data type, constraints, and validation rules. Table definitions are metadata; the actual physical database table is created when you deploy.

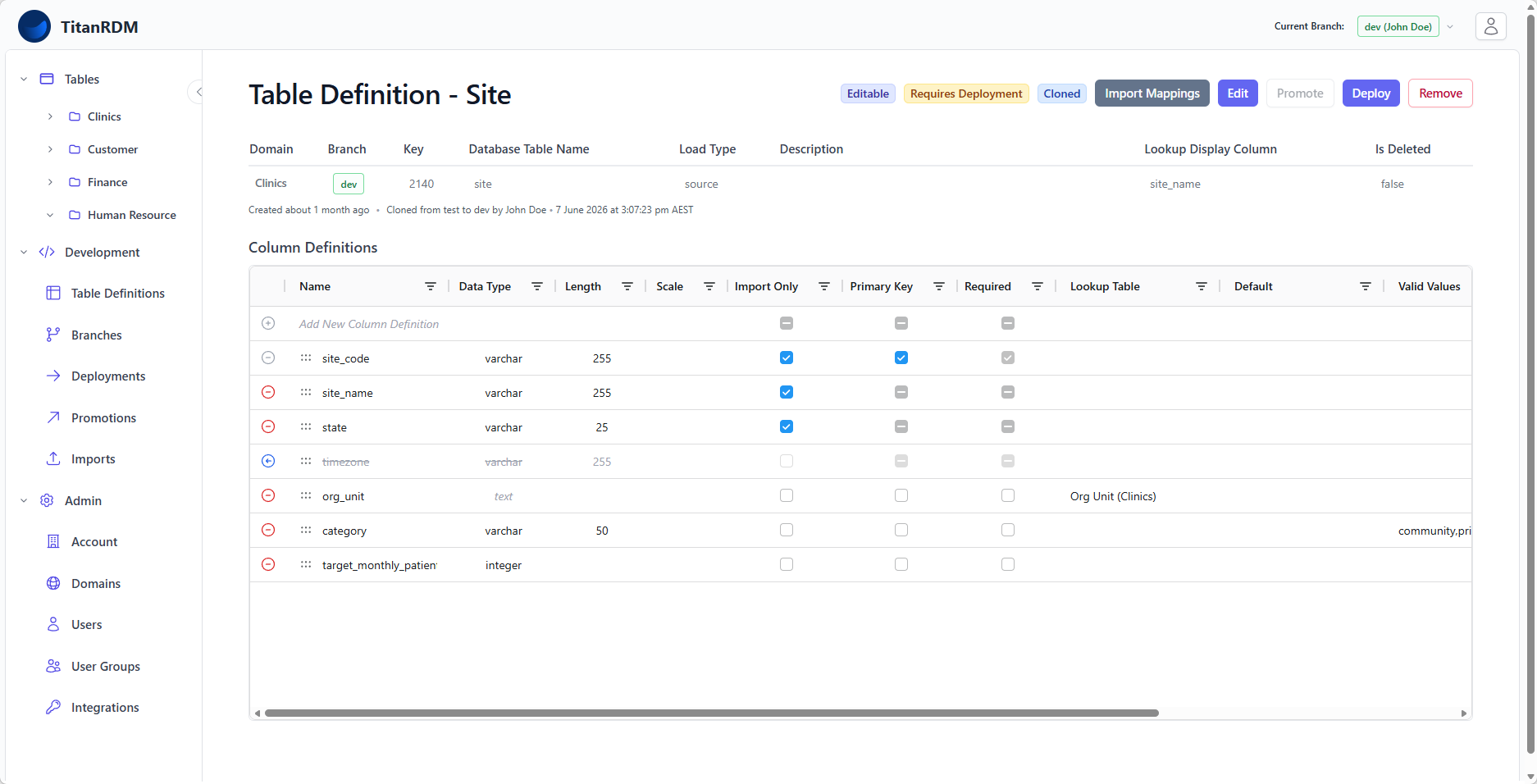

Table definition show page

Table Definitions vs Deployed Tables

TitanRDM separates the definition of a table from its physical existence in the database:

Concept	What It Is	Where You Work With It
Table Definition	The editable metadata describing a table's structure (columns, types, keys). Lives on a branch.	Development > Table Definitions
Deployed Table	The actual physical database table created from a table definition after deployment. Contains your data.	Tables (sidebar)

This separation is fundamental to how TitanRDM works:

You create or edit a table definition on your current branch
You deploy to apply those changes to the physical database
Users view and edit data in the deployed table

Changes to a table definition do not affect the deployed table until you explicitly deploy. This gives you a safe space to make structural changes, review them, and then apply them in a controlled way.

Table Definition Properties

When you create or edit a table definition, you configure these properties:

Property	Required	Description
Branch	Yes	The branch this definition lives on. Pre-filled with your current branch (read-only).
Domain	Yes	The information domain this table belongs to (e.g., Finance, Sales).
Name	Yes	A human-readable name for the table (e.g., `Currency Codes`). Must be unique within the branch. Must start with a letter or underscore.
Database Table Name	No	The physical name used in the database (e.g., `currency_codes`). Auto-generated from the name but can be customised. Must not contain spaces.
Description	No	Free-text description. Shown to users on the data entry page — useful for instructions or context.
Allow new rows to be added manually	No	If enabled, users can add new rows to this table through the UI. Data uploads are append/update only—new rows added by the user are preserved. If disabled, new rows can only be added to the table through an upload (manual or SDK/API). Users can still edit mappings, categorisation columns, etc. Upon upload, a full sync, including deletes, occurs. Generally suitable where the source is another system.
Lookup Display Column	No	Which column's value to show when this table is referenced by a foreign key in another table. Defaults to the first string column. Only available after columns are defined.
Key	Auto	A system-generated numeric identifier that stays consistent across branches. Used to track the same table definition as it is promoted through environments.

Column Definitions

Each table definition has one or more column definitions that describe its columns. You manage columns from the Edit Columns page, which uses an interactive grid editor.

Column Properties

Property	Required	Description
Name	Yes	The column name. Must start with a letter or underscore. Must be unique within the table.
Data Type	Yes	The PostgreSQL data type. See Supported Data Types below.
Length	No	Maximum length for `varchar`/`character`, or fractional-second precision for timestamp/time types (0–6).
Scale	No	Number of decimal places for `decimal` types.
Primary Key	No	Mark this column as part of the table's primary key. At least one PK column is recommended.
Required	No	If checked, this column cannot be null.
Foreign Key	No	If checked, this column references another table. Select the referenced table to enable lookup dropdowns in the data grid.
Description	No	Describes the column. Shown as a tooltip in the data grid.
Valid Values	No	A comma-separated list of allowed values. Enforced as a dropdown in the data grid.
Display Order	Auto	Controls the left-to-right order of columns in the data grid. Drag to reorder.

Importing Table Structure

Instead of defining columns manually, you can import a table structure from:

SQL DDL — paste or upload a CREATE TABLE statement and TitanRDM will parse the columns and data types
File upload — upload a data file (CSV, Excel, JSON, Parquet) and TitanRDM will infer the column names and data types using schema probing

See Importing Schema for more details.

This is a fast way to bootstrap a table definition from an existing source.

Supported Data Types

Category	Types	Notes
Text	`varchar`, `character`, `text`	`varchar` and `character` support a length parameter. `text` is unlimited.
Integer	`integer`, `smallint`, `bigint`	Whole numbers of different ranges.
Decimal	`decimal`, `real`, `double`	`decimal` supports length (precision) and scale. `real` and `double` are floating-point.
Boolean	`boolean`	True/false values.
Date/Time	`date`, `time`, `timetz`, `timestamp`, `timestamptz`	`timetz` and `timestamptz` include timezone. Length parameter controls fractional-second precision (0–6).
Binary	`binary`	Binary data.

Lookup Table Columns

A Lookup Table column definition references another table definition. When editing data in the grid, Lookup Table columns display a lookup dropdown showing values from the referenced table. The dropdown shows the referenced table's lookup display column (configurable on the referenced table definition). A Lookup Table column definition will have its data type set to text and disabled.

Foreign key relationships also affect deployment ordering — TitanRDM automatically deploys referenced tables before tables that depend on them. There are controls to ensure that deployment ordering is respected when deploying tables.

System Columns

When a table definition is deployed, TitanRDM automatically adds system columns that you do not need to define:

System Column	Purpose
`trdm_sk`	Auto-generated surrogate key (primary key for the physical table)
`trdm_created_at`	Timestamp when the row was created
`trdm_updated_at`	Timestamp when the row was last modified
`trdm_updated_by`	The user who last modified the row
`trdm_is_deleted`	Soft-delete flag for tracking removed rows

These columns are managed by the system and are not visible in the column definition editor. They are visible (but disabled) in the Table data editor.

Table Definition Lifecycle

A table definition moves through several states during its life:

Create → Edit Columns → Deploy → (Edit → Deploy again) → Promote → Deploy on target branch

Create — define the table name, domain, and load type
Add/edit columns — define the structure
Deploy — apply changes to create or alter the physical table
Iterate — modify columns and redeploy as needed
Promote — move the definition to another branch (Business/Enterprise only)
Deploy on target — apply the promoted definition on the target branch

Note: A table definition that has been modified since its last deployment shows a "Needs Deploy" status on the dashboard and in the table definitions list.

Cloning Table Definitions

You can copy table definitions from higher branches to lower branches to make changes to them. Like best practice software development, you should only make changes in Private development branches. In-fact TitanRDM enforces this and doesn't support changes to table definitions directly in shared branches. To make changes to a table definition, you must first clone it to a Private development branch:

Switch to the parent branch and navigate to the Table Definitions page
Use the tick box column to select the table definition(s) you want to clone
Click the Clone button to clone the tables to your private development branch.

Alternatively.

Navigate to the Table Definition's show page - Development > Table Definitions and click on the table definition in the list
Click the Clone button to clone the table to your private development branch

Cloned definitions appear as new (undeployed) on your private development branch.

Removing Tables

Remove — permanently deletes the table definition and its deployed snapshot. The physical table is renamed with a _t_rem suffix so data is preserved, but the definition itself is hard-deleted and cannot be restored.
Automatic cleanup — physical tables left behind with the _t_rem suffix are dropped by a daily background job after 7 days.
